Official Dexter 8,000 lb. Hydraulic Disc Brake Caliper Kit - 1 Wheel

Official Dexter 8,000 lb axle replacement caliper kit. This caliper fits both the left or right hand side of your trailer. Caliper is designed with 4 pistons that push from both directions. Made from cast iron construction with a black paint finish. Designed to work with 16", 16.5", and 17.5" wheels.

Kit includes:

• (4) Caliper mounting nuts #006-045-00

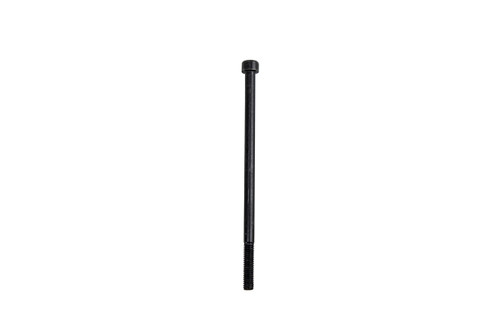

• (4) Caliper mounting bolts #007-254-00
• (1) Hex Bolt #007-469-00
• (1) Nut #006-289-00
• (1) Cotter Ring #019-019-00
• (1) Tube clamp #027-060-00
• (1) Anti-rattle spring #046-145-00
• (1) Spring Tension Clip #046-218-00
• (1) Bleeder Screw #054-092-00
• (1) Hose Adapter Fitting #054-094-00
• (1) Hydraulic cross over line for yokes without notch #071-513-00
• (1) Hydraulic cross over line for yokes with notch #071-518-00
• (1) Hex bolt #087-002-00
• (2) Cast Assembled Caliper half piece #089-003-02

Main Specs:

Axle size : 8,000 lbs.
Manufacturer: Dexter Axle
Dexter's Part Number : K71-630-00
Dexter Parts Warranty: 5 Year Warranty

Position on Chart below : All marked 2
