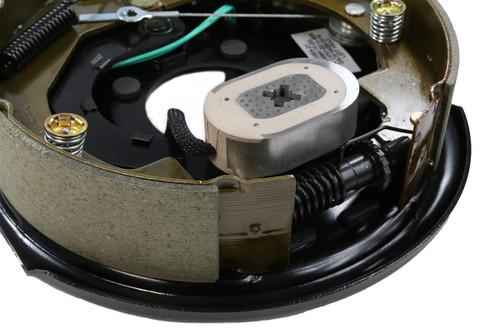

Self-Adjusting 3,500 lb. axle 10"x2-1/4" Left Hand Brake Assembly

Complete left hand (driver side) electric brake assembly for 3,500 lb axles. Simply bolts on to the axle flange with 4 studs (included) and hook up the 2 electrical wires. These are forward Self-Adjusting brakes – require no manual adjustment. Works with most standard hub/drum assemblies including Dexter, Lippert (LCI), Rockwell American & Al-KO. Brakes are QAI & CSA certified and pads are fully bonded (no rivets) for long life and reliability. E-Coated backing plates and zinc plated components provide resistance to rust and corrosion. Rear plastic adjuster plugs are included to cover access holes. Main Specs:

• Brake Size: 10" Diameter x 2-1/4" wide
• Mounting Position: Left Hand (Driver's side)
• Adjust Type: Forward Self-Adjusting
• Mounting Flange Type: 4 bolt
• Manufacturer: Axle Teknology LLC.
• Part Numbers: B10EA-21
• Warranty: Limited 1 Year

Fits common name brand axles like Dexter, AL-KO, Rockwell American, Quality and more. Axle Technology Quality: Self-Adjusting Brakes Advantage: Standard electric brakes require the user to manually adjust the brake shoes over time. Adjustment is required to provide consistent and efficient braking performance. Failure to complete this task leads to weak brakes and a failure in an emergency braking situation. Self-adjusting brakes take the work away by being always properly aligned while driving forward, automatically saving the user time and providing consistent and safer braking experience. QAI Testing and CSA Certification: These brake assemblies meet and exceed the requirements for the Canadian Standards Association (CSA). CSA certification requires a brake to stop a regulated load in a set distance and to be built to industry standards. Additionally, these brakes have been tested by QAI for braking performance in a complete automotive setup under real-world conditions. This testing ensures the brake is built with safety and quality in mind. Automotive-Grade Friction Material: Axle Technology brings the power of automotive-grade friction material to the trailer brake market. This provides improved stopping power and longevity. The friction material is fully bonded to the surface of the shoe; the lining is custom-molded on the shoe, ensuring a perfect fit and reducing the chance of cracking and crumbling. In addition, tapered edges protect against mechanical lockup, which can occur when brake shoes are excessively worn or broken. The friction material is SAE-N certified. SAE-N means the material is environmentally safe and complies with California and Washington regulations. As a result, this material not only provides high-performance braking that stands the test of time but is also environmentally friendly and safe to use in both the United States and Canada.
