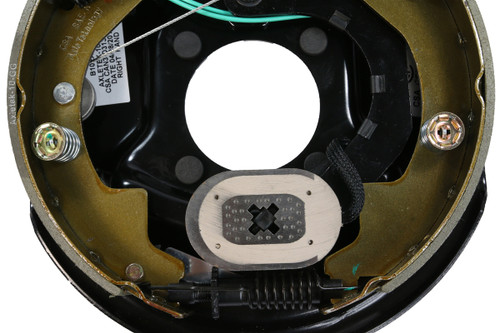

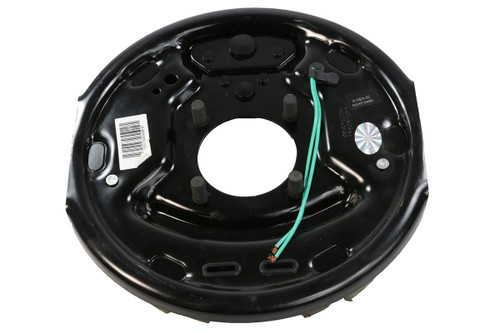

- Complete right hand (passenger side) electric brake assembly for 3,500 lb axles.
- Simply bolts on to the axle flange with 4 studs (included) and hook up the 2 electrical wires.
- Forward Self-Adjusting brakes – require no manual adjustment.
- Works with most standard hub/drum assemblies including Dexter, Lippert (LCI), Rockwell American, and Al-KO.
- Brakes are QAI & CSA certified and pads are fully bonded (no rivets) for long life and reliability.
- E-Coated backing plates and zinc plated components provide resistance to rust and corrosion.
- Rear plastic adjuster plugs are included to cover access holes.
Main Specs:
- Brake Size: 10" Diameter x 2-1/4" wide
- Mounting Position: Right Hand (Passenger's side)
- Adjust type: Forward Self-Adjusting
- Mounting Flange type: 4 bolt
- Manufacturer: Axle Teknology LLC.
- Part numbers: B10EA-22
- Warranty: Limited 1 Year
Fits common name brand axles like Dexter, AL-KO, Rockwell American, Quality and more.
Axle Technology Quality:
Self-Adjusting Brakes Advantage:
- Standard electric brakes require the user to manually adjust the brake shoes over time. Adjustment is required to provide a consistent and efficient braking performance. Failure to complete this task results in weak brakes and unreliable emergency braking.
- Self-adjusting brakes automatically maintain proper alignment while driving forward, saving time and ensuring consistent, safer braking experience.
QAI Testing and CSA certification:
- Brake assemblies meet and exceed the requirements for the Canadian Standards Association (CSA), stopping a regulated load in a set distance and adhering to industry standards.
- Tested by QAI for braking performance in complete automotive setups under real-world conditions to ensure safety and quality.
Automotive-Grade Friction Material:
- Brings the power of automotive-grade friction material to the trailer brake market for improved stopping power and longevity.
- Friction material is fully bonded to the surface of the shoe; the custom-molded lining provides a perfect fit and reduces the chance of cracking or crumbling.
- Tapered edges help protect against mechanical lockup, which can occur when brake shoes are excessively worn or broken.
- The friction material is SAE-N certified, indicating that it is environmentally safe and complies with California and Washington regulations.
- Provides high-performance braking that stands the test of time while being environmentally friendly and safe for use in both the United States and Canada.
