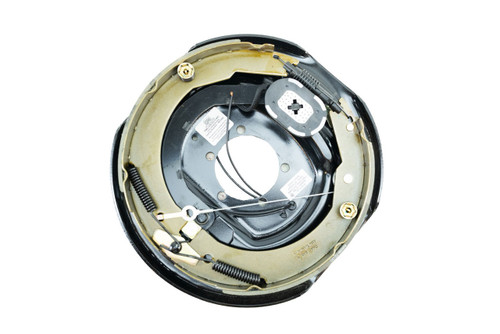

Complete right hand (passenger's side) electric brake assembly for 5,200 lb, 6,000 lb, and 7,000 lb axles.
- Simply bolts on to the axle flange with 5 bolts (not included) and hook up the 2 electrical wires.
- These are forward Self-Adjusting brakes – require no manual adjustment.
- Works with most standard hub/drum assemblies including Dexter, Lippert (LCI), Rockwell American & Al-KO.
- Brakes are QAI & CSA certified and pads are fully bonded (no rivets) for long life and reliability.
- E-Coated backing plates and zinc plated components provide resistance to rust and corrosion.
- Rear plastic adjuster plugs are included to cover access holes.
Main Specs:
- Brake Size: 12" Diameter x 2" wide
- Mounting Position: Right Hand (Passenger's side)
- Adjust type: Forward Self-Adjusting
- Mounting Flange type: 5 bolt
- Warranty: Limited 1 Year
Fits common name brand axles like Dexter, AL-KO, Rockwell American, Quality and more.
Crossover part number reference chart:
| |
Quality / Rockwell |
Dexter |
AL-KO |
Axis |
| Left Hand Side |
4704-LA |
23-464-00 |
1530029 |
1530029.9 |
| Right Hand Side |
4704-RA |
23-465-00 |
1530028 |
1530028.9 |
Axle Technology Quality: Self-Adjusting Brakes Advantage:
- Standard electric brakes require the user to manually adjust the brake shoes over time to provide a consistent and efficient braking performance. Failure to adjust can result in weak brakes and potential failure in an emergency situation.
- Self-adjusting brakes automatically realign while driving forward, saving time and providing consistent, safer braking experience.
QAI Testing and CSA certification:
- These brake assemblies meet and exceed the requirements for the Canadian Standards Association (CSA). CSA certification requires a brake to stop a regulated load within a set distance and to be built to industry standards.
- The brakes have also been tested by QAI for braking performance in a complete automotive setup under real-world conditions, ensuring safety and quality.
Automotive-Grade Friction Material:
- Axle Technology brings the power of automotive-grade friction material to the trailer brake market, improving stopping power and longevity.
- The friction material is fully bonded to the surface of the shoe and custom-molded for a perfect fit, reducing the chance of cracking and crumbling.
- Tapered edges protect against mechanical lockup that can occur when brake shoes are excessively worn or broken.
- The friction material is SAE-N certified, meaning it is environmentally safe and complies with California and Washington regulations, providing high performance that lasts over time.
