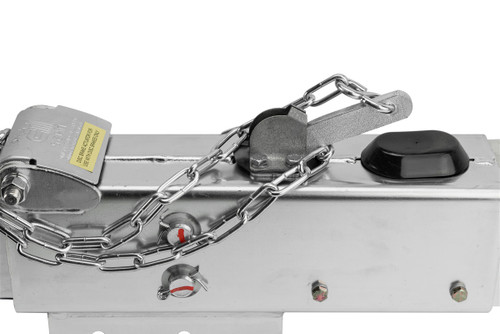

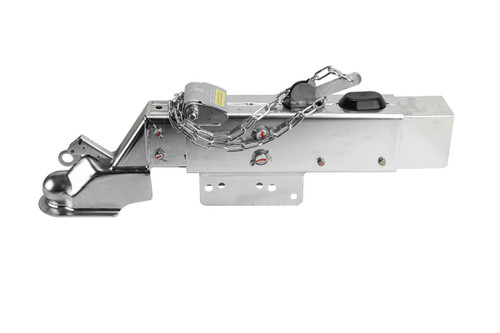

Surge Brake Actuator - Disc with2-5/16" Ball - 12,500 lbs.

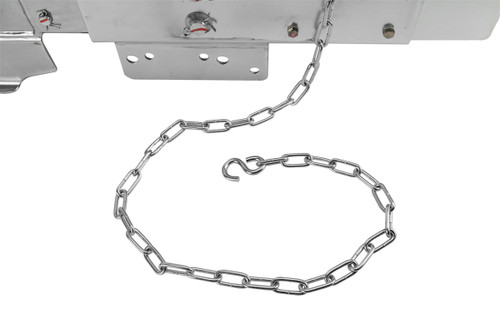

Dexter Surge Brake Actuator - Disc Brakes w/ 2-5/16" Ball - 12,500 lbs. Features: • Unique roller design reduces resistance and allows for smooth operation • Mounts to 3" wide trailer tongues with a bolt-on installation • Zinc plated for corrosion resistance • Included steel breakaway cable and clip • Includes an electric reverse lockout allowing you to back up without actuating trailer brakes • Built-in shield protects the solenoid valve from the elements Main Specs: • Finish: Zinc • Brake Application: Disc • Ball Size: 2-5/16" • Hitch Drop: 3" • Capacity: 12,500 lbs. • Max Tongue Weight: 1,250 lbs. • Part number: 068-506-20 • Titan Part number: 4750620 • Model: 10 • Manufacturer: Dexter Axle • Warranty: 1-Year Warranty DX brake actuator installation instructions: https://www.dexteraxle.com/user_area/content_media/raw/059A6001DX8.0InstructionSheet.pdf
