Want to add a reliable wireless control to your 4 function KTI hydraulic circuit? This bluetooth / wireless system is both convenient and very easy to install and operate. This wireless remote system will plug into any KTI system on your trailer built after January 2015. Remote range is approximately 40 feet with no obstructions. Bluetooth features give you 30 ft range with the Installed KTI APP. The receiver has a built in shut-off feature when idle for 20 minutes, and has the ability to program up to 4 key fob remotes to one receiver.
Includes an inline 15 amp fuse on the power wire for system protection.
5/16" electrical connectors are included on the 24" power and ground wire leads for easy connection to the battery.

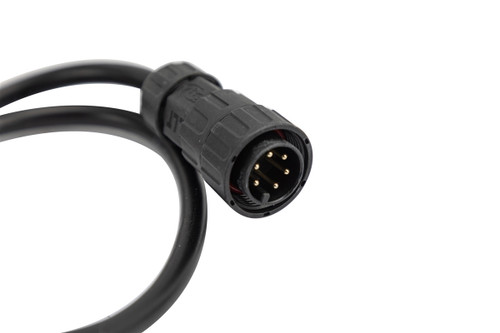

2-button handheld control cable connector length is 14".
2-button power unit connector cable is 32".
Detachable antenna wire lead length is 38".
Magnetic antenna base Kit
Includes:
- Main Transmitter
- 23 AE Battery for Transmitter

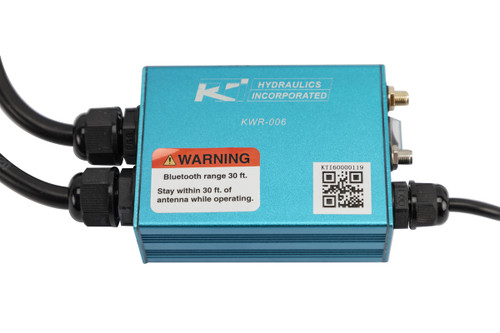

- Main Receiver Unit
- Bluetooth Antenna (gold colored end)

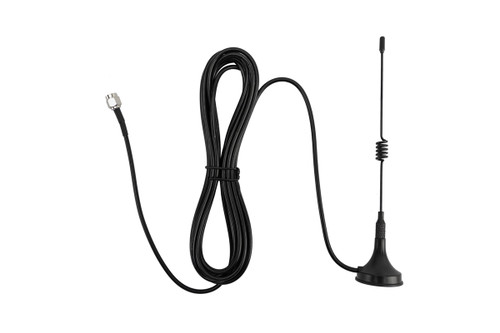

- 433 Antenna (silver colored end)
- Antenna Mounting screws
- (2) 2" x 2" velcro mounting strips for receiver unit
- Installation manual iOS and Android app available for download
KWR Bluetooth Hydraulic Controller Instruction Manual
