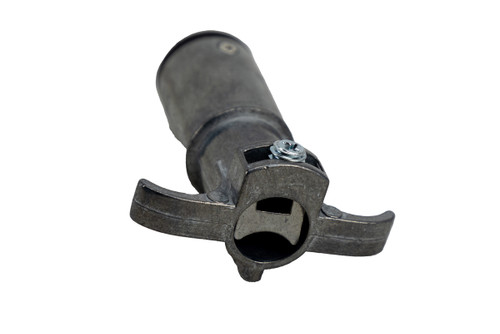

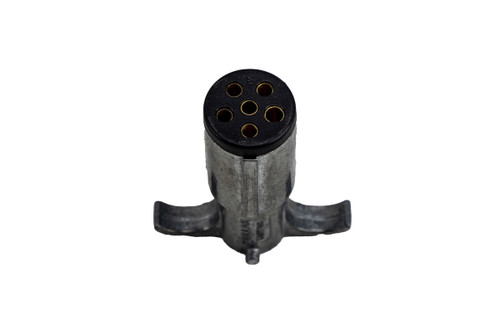

6-pole Trailer Electrical Plug - HD Die-Cast

Die Cast 6-pole Trailer Electrical Wiring Plug • Heavy Duty Dia-Cast construction is designed for the toughest applications • Unique cable clamp prevents chafing by giving more cable support • Round brass terminals reduce voltage drop • Two large finger pull grips allow for easy pull of plug out of the Vehicle Socket • High impact thermoplastic interior is designed for easy removal and replacement • Dust and Water Resistant • Plug is available with a optional cable guard Wiring Configuration: • White: Ground • Green: Right turn • Yellow: Left turn • Brown: Tail Lights • Red: Electric Brakes • Blue: 12 Volt + / Auxiliary Circuit Main Specs: • Max Wire Gauge: 12 Gauge • Voltage: 6-28 Volt • Currant: 40 Amps • Warranty: 1 year limited • Manufacturer: Pollak • Part number: 11-604
