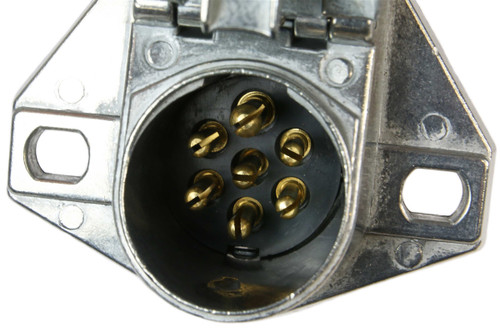

7-pole pin Tow Vehicle Side Electrical Plug - Die Cast

Heavy Duty Dia Cast 7 Pole Vehicle plug is made for your trailer and used in the semi-tractor trailer industry Main Construction:

• Mounts with a simple 2-hole mounting style and fits in a 2" diameter hole
• Built slanted with built-in drain slot on cover to handle accumulated moisture
• Opens and closes with a stainless steel spring
• Bottom lip is extended for better plug support
• Is the highest quality that meets and exceeds SAE J560 standards

Electrical Construction:

• Comes with 7 round floating solid brass pins for longevity and maximum contact
• Allows for a wide variety of wire gauges from #16 gauge to #8 gauge
• Self-grounding to #1 ground terminal

Wiring Configuration - with suggested wire gauge:

• Blue – Auxiliary Circuit / ABS (#16 to #10 Gauge)
• White – Ground (#14 to #8 Gauge)
• Black – Clearance, Side Markers & Identification (#16 to #12 Gauge)
• Yellow – Left Turn (#16 to #12 Gauge)
• Red – Stop Lamps & Anti-Lock Devices (#16 to #10 Gauge)
• Green – Right Turn (#16 to #12 Gauge)
• Brown – Tail, Marker, & License Plate Lights (#16 to #12 Gauge)

Main Features:

• Mounting Dimensions: 2" Diameter hole
• Voltage Rating: 6-28 Volts
• Current Rating: 40 Amps
• Construction: Dia-Cast
• Manufacturer: Pollak
• Part Number: 11-720
• Warranty: 1-Year Limited Warranty

Dimensions Drawling 11-720
