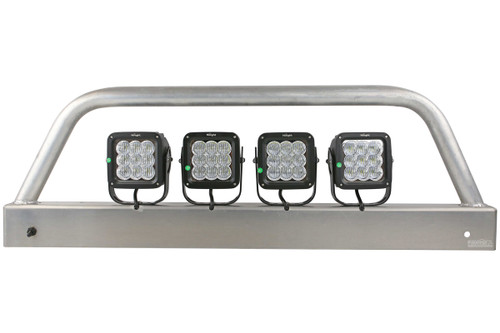

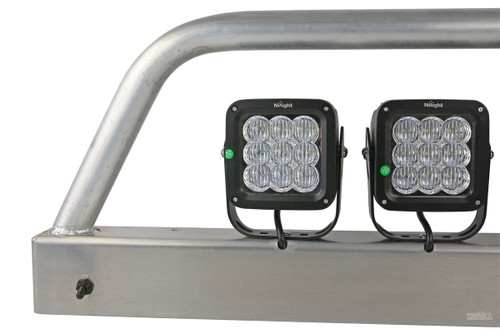

Prewired bolt-on LED loading light bar. This light bar is one of the most common accessories for our gooseneck trailers.
• Features (4) heavy duty 27 watt LED flood lights and comes with a built in toggle switch.
• Professionally formed, constructed, welded, and wired.
• Built tough for years of service. Only an estimated 30 minutes installation time.
• Built and assembled in the USA.
• Also works as a great lighting solution for the worksite.
• PRE-WIRED & READY TO BOLT ON – LIGHTS ARE INCLUDED
• Fits on the channel cross-members between the risers on any PJ Gooseneck.
• Includes four (4) square LED flood lights in an HD alloy housing.
• Lights can be adjusted vertically and horizontally.
• Lights are 4-1/2" square and are rated at 27 watts per light.
• Light working lifespan: 30,000 hours.
• Beam pattern: Flood.
• Light material: Aluminum Alloy.
• LED Color Temperature: Pure White 6000K – 6500K.
• IP67 Waterproof.
• Light Bar Paint finish: Raw Aluminum.
• 1-1/2" mandrel bent round tube protective bar; lower frame built from 3/16" aluminum.
• Pre-wired with generous 9ft of wiring for simple two-wire installation.
• Toggle switch mounted to the light bar for easy access from the trailer deck or ground.
• Lights are connected with heat shrink butt connectors for reliability and protection from the elements.
• Connection points have a secondary rubber shrink tube added for superior weather protection.
• Wiring for each light is protected by rubber coating and steel clamps.
• Comes with a waterproof on/off toggle switch with a waterproof protective rubber boot.
• Includes zinc plated hardware (nuts, washers, & bolts).
• Tools that may be required for installation: cordless drill, 3/8" drill bit, 1/2" wrench, and a screwdriver.
• Light bar dimensions: 42" wide x 12.5" tall x 4" deep.
• Weight: 25 lbs.
