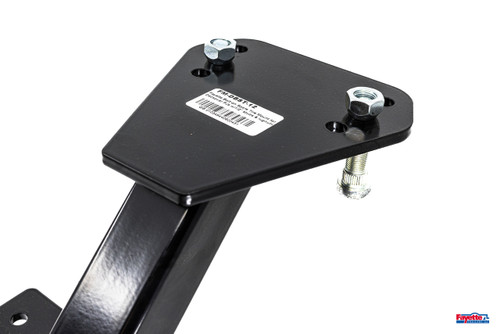

Fayette Weld-on Trailer Spare Tire Mount for Bumper Pull Deckover and Flatdeck Trailers.
This mount was specifically designed for PJ Trailers deckover and flat deck bumper pull models with a 2" square tubing headache rail on the front of the deck.
Designed for PJ Trailers but may also work on other brands (not guaranteed).
This spare tire mount is professionally laser cut, formed, welded, acid washed, and finished with a high quality powder coat.
Comes with (2) 1/2" wheel studs pressed in.
Product Specifications:
- Material: Steel
- Finish: Black Powder Coat
- Overall Height:
- Wheel Mounting Plate Width: 7"
- Wheel Mounting Plate Height: 7.5"
- Square Tubing: 2" Square
- Steel Thickness: 1/4"
- Wheel Mounting Plate Thickness: 5/16"
- Stud Size: 1/2"
- Fits Lug Pattern: 5 lug on 5", 5 lug on 4.5", 6 lug on 5.5", and 8 lug on 6.5"
Note: Studs can be pressed out and re-pressed into different positions to allow compatibility with different wheel lug nut patterns.
Installation Instructions:
- Prior to drilling, measure the mounting position to ensure the spare tire will properly clear the trailer jack, tongue, etc.
- Set the mount in position and use the holes on the mount as a guide.
- Drill the holes in the box tubing and trailer frame for the mount.
- Securely bolt the mount to the trailer.
- The finished product is not only very secure and stable, but also looks great! No welding is required.
