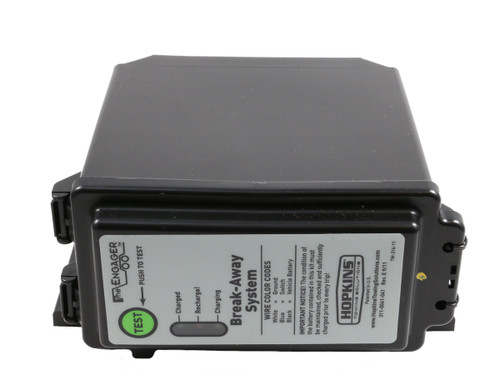

Hopkins Engager Complete Trailer Break-Away Kit - Top Load - 20400

Complete Engager trailer break away kit used to bring your trailer safely to a stop - for trailers with electric brakes.

• Will apply trailer brakes in the event your trailer becomes unhooked from the vehicle (this system is required in most states)
• For use on 1 or 2 axle trailers with electric brakes
• Not to be used on electric over hydraulic disk brakes - (for hydraulic brakes use kit #34-285)
• Manufacturer: Hopkins
• Manufacturer's Part Number: 20400
• Used on all PJ gooseneck and bumper pull trailers with electric brakes

Kit Includes:

• Built in battery charger - keeps the battery fully charged while towing
• Weather resistant plastic case
• (3) Self tapping mounting screws
• Sealed rechargeable 5 amp/hr 12v battery
• Breakaway switch and steel cable
• Installation instructions are included

Installation:

• White: Ground
• Black: + 12v battery charge wire
• Blue: Goes to breakaway switch

Test feature with 3 LED lights indicates battery charge status:

• Green (fully charged)
• Red (needs recharged)
• Yellow (charging)
