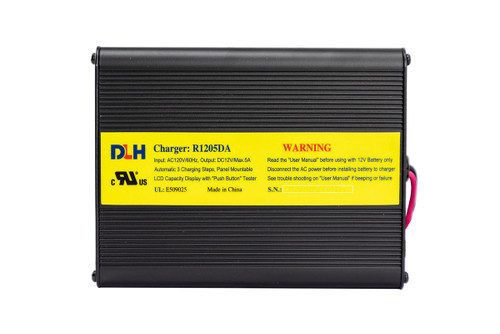

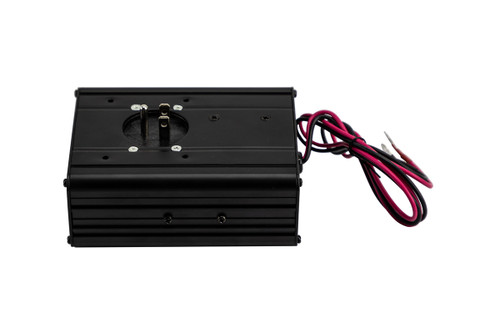

Onboard Battery Charger with Status Indicator 12 volt 5 amp

This charger is commonly used on trailers that feature an electrically powered hydraulic function.

Battery charger conveniently mounts inside trailer toolbox and the outlet housing mounts to the outside of the box.

The included mounting screws hold the lid in place on the outside, and securely mount the charger to the inside of the box.

Kit Includes:

• (1) Battery charger unit w/ readout

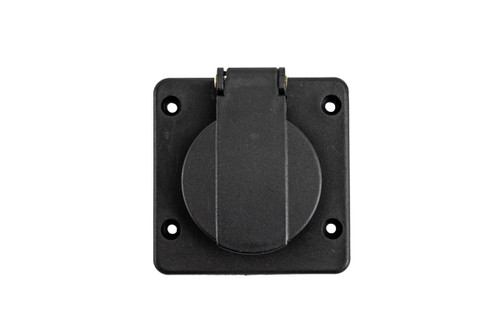

• (1) Electrical outlet cover w/ spring loaded lid
• (4) Screws to secure cover housing & mount battery charger

Specs:

• 12 volt compatibility
• 5 charging amps
• 7 stage automatic charging cycle
• Suitable for AGM and STD battery
• High temperature protection
• Short circuit & reverse polarity protection
• Overcharge & overload protection
• Battery fault detection
• 5/16" heavy duty ring terminals with shrink tube

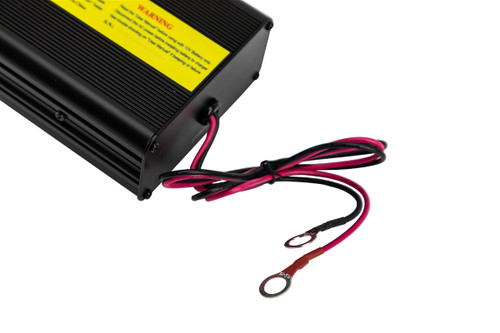

• 36" wire leads with dipped terminal ring connections

Indicator Lights:

• Red: For wrong connection or bad battery
• Amber: Charging
• Full Green: The battery is fully charged, or is under floating charging to keep the battery ready to use when needed.
