Brightway Breakaway System w/ 10 Amp/Hr Battery, 2 Amp Charger, And Push-To-Test System
- Made for all trailers with electric or electric hydraulic disc brakes with 1-4 axles
- Especially designed to handle hydraulic disc brake applications that require a large breakaway battery capacity

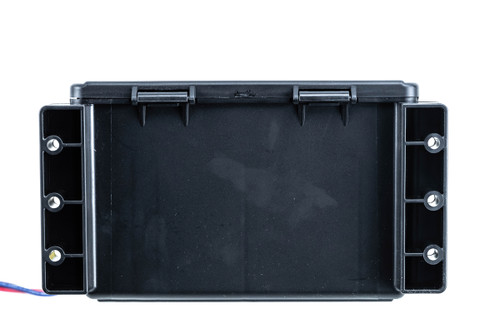

Durable case is top-load design and includes a rubber o-ring in the lid for weather protection
- Breakaway Switch and plastic plunger with 48" cable included
- UV-protective coating on cable boosts durability and is scratch resistant
- 2 Amp Built in charger automatically charges when hooked up to vehicle
- 12 Volt rechargeable battery is included and sealed inside of box

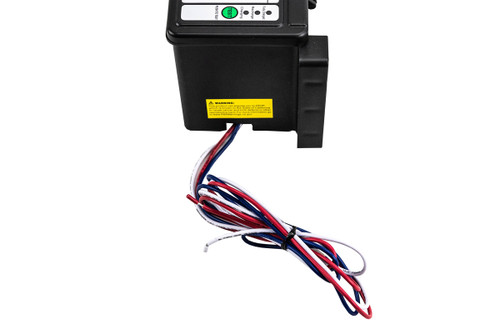

Push-to-Test feature allows you to ensure the battery is fully charged
- Green = Fully Charged
- Yellow = Charging from the tow vehicle
- Red = Recharge needed
Convenient wiring diagram is printed on lid for ease of installation and troubleshooting
- Mounting hardware to the trailer is not included
- Required in most states for trailers over 3,000 lbs. and equipped with electric over hydraulic disc brakes
Kit includes
(1) Top-load Breakaway Box w/ trickle charge & Push-to-Test
(1) 12V 5 Amp/Hr Sealed Battery
(1) Breakaway Switch w/ 4 Ft. cable
Main Specs:
Battery Box Dimensions: 5" Long x 8-7/8" Wide x 5" Tall
Voltage: 12V
Battery Amp Hours: 10 AH
Battery Type: Sealed Lead Acid
Cable Construction: Woven steel w/ plastic coating
Cable Length extended: 4 ft.
Manufacturer: Bright Way Group LLC.
Part number: 2311
Alternative part number: 2311-100,3802311
Warranty: 1-Year Limited Warranty
